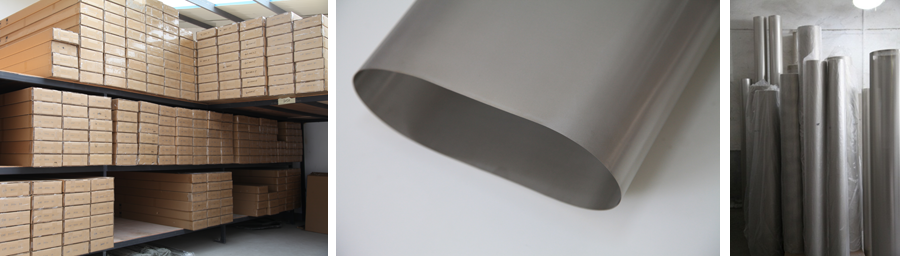

Rotary nickel screen

Rotary nickel screen

Nickel we used for screen making is very pure around 99.996%.
Lirong Nickel Screen can provide the best printing result for different designs and fabrics, good penetration performance with all types of dye. All our nickel screens can be used 3-5 times repeatedly in proper strip way.

Standard Screen featured with big hole, smooth dams and no kinks, the section of the hole shows streamlined which is favorable for the penetration of dyestuff, more steady in the printing of single pattern, which guarantee the printing results, and avoid some color difference, applied in the printing of all kinds of fabrics made by different fibers.

High mash screen featured with

• High open area and good evenness,uniform paste penetration
• Excellent tenacity and elasticity
• Suitable for any kind of dyestuff and pigments
• Enhancement the adhesion of the emulsion
• Reduce the cost of printing paste and auxiliary accessories

Widely applied in the printing of all designs including fine outline,complex geometrical figures，half tone etc.

目数	周长/毫米	长度/毫米	厚度/微米	开孔率/%
40	640，688，820，914，1017	1250 to 2080	130-135	20-30
60	640，688，820，914，1017	1250 to 2080	120-125	21-22
80	640，688，820，914，1017	1250 to 2080	110-115	16-17
100	640，688，820，914，1017	1250 to 2080	110-115	14-15
105	640，688，820，914，1017	1250 to 2080	110-115	14-15
125	640，688，820，914，1017	1250 to 2080	110-115	14-15
155	640，688，820，914，1017	1250 to 2080	110-115	14-15
40	640	2650 to 3500	135-145	28-30
60	640	2650 to 3500	125-135	21-22
80	640	2650 to 3500	100-115	16-17
100	640	2650 to 3500	100-115	14-15
105	640	2650 to 3500	100-115	14-15
125	640	2650 to 3500	100-120	14-15
155	640	2650 to 3500	105-115	13-14
